SUNSYT · Balcony

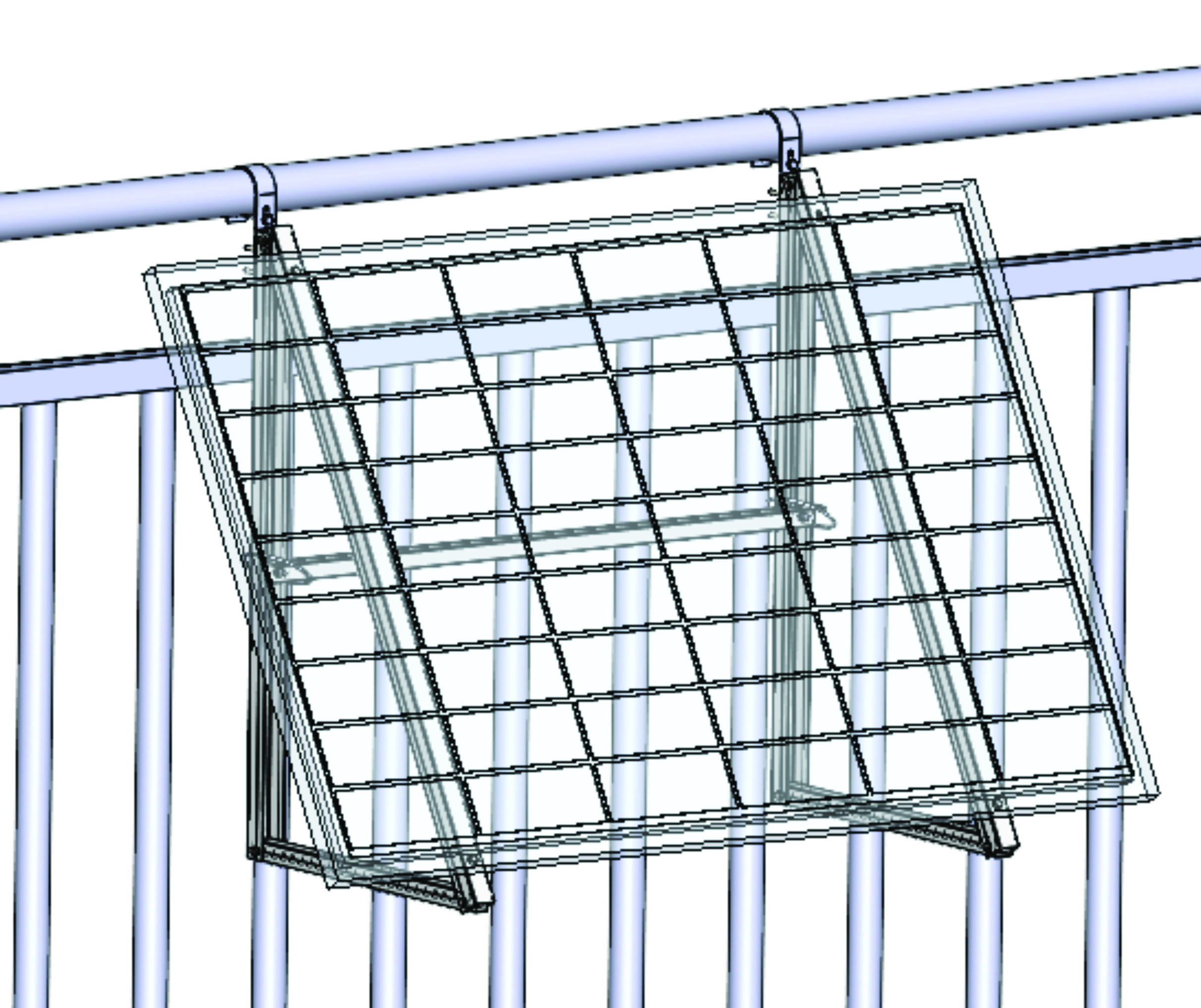

Balcony Mounting System
3-in-1 balcony solar mounting — lock to the balcony rail, place on the ground or hang on the wall.
3-in-1 balcony solar mounting — lock to the balcony rail, place on the ground or hang on the wall.
The Balcony mounting system is 3 in 1 type, can lock to the balcony rail, put onto the ground, and hang onto the wall. It can be used with micro-inverter, can be installed by client themselves.
| Parameter | Value |
|---|---|
| Installation area | Balcony |
| Foundation | / |
| Tilt angle | 0-30° |
| Wind speed | 60m/s |
| Snow load | 1.6KN/m² |
| Ground clearance | According to building height |
| Applicable module types | Module with frame |
| Layout | Landscape |
| Design standard | JIS C 8955:2017, AS/NZS1170, and national standards |
| Structure Material | AL6005-T6 |
| Fasteners Material | Stainless steel |
Specifications per DH Catalogue — contact our engineering team for project-specific drawings.
Tell us your balcony size and module choice — we will confirm fit and provide a quote within 24 hours.
Talk to Our Engineers
